Cold-Room Heaters
Cold-Room Heaters
Reliable Heating Solutions for Cold-Room Applications
Heaters India, under the renowned brand name Calgen, provides high-performance heaters specifically designed for cold-room applications. Our cold-room heaters ensure efficient frost prevention, temperature regulation, and seamless operation in refrigerated environments, essential for preserving product integrity and operational efficiency.
Calgen by Heaters India offers a wide selection of heaters to cater to the unique needs of cold-room applications. Our product line includes:

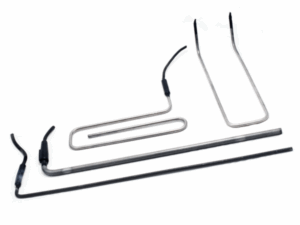

Defrost Heaters – Prevent ice build-up on evaporator coils, enhancing cooling efficiency and reducing downtime.
Tubular Heaters – Suitable for underfloor heating and wall installations to prevent freezing in storage areas.
Silicone Rubber Heaters – Flexible and durable, designed for localized heating to protect critical components from frost.
Heating Panels – Customizable for walls and ceilings, delivering uniform heating across cold-room surfaces.

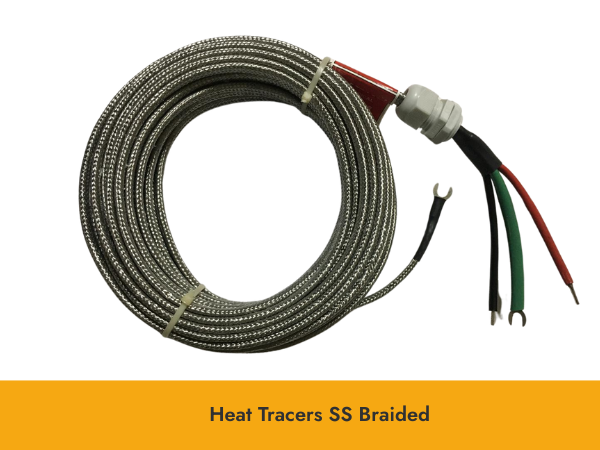

SS Braided Heaters ( SS Braided Heat Tracers)
Available in 30w/45w/60w/100w per metre standard sizes – 1,2,3,4,5,6,7,8, 10 metres and also can be made according to the customised sizes
Heat Tracers / Flexible heaters
Flexible heaters products provides uniform operating temperature to full length of pipeline
- Unique multi-strand heating element
- Flexible Heater is the only system which has enough power for rapid melt-out during restart after plant shut down conditions
- Temperatures range from ambient to 2000C (other temperature ranges can also be made as per customer’s requirements.)
- Long circuit lengths up to 200 metres or more
Short lengths up to 1 metres - Latest technology backed by group resources
Locations in hazardous or non-hazardous areas. - System is waterproof for overload or buried pipelines.
- Easy to install
Approved by recognized inspection agencies like C.C.E Nagpur & tested by CMRS , Dhanbad
CFH are rugged enough to withstand rough handling, yet flexible and easy to install.
Trace Heating System For Long Pipelines.
CALGEN traces are multi-stranded nichrome wire insulated with PTFE to give high temperature rating and weather proofing braided with glass yarn for efficient heat transfer and H type varnish coating . Ideally suited for fuel pipelines carrying Furnace/LSHS/Post FCC oils/Other viscous oils in process pipelines/storage tanks.
CALGEN electrical heat tracing is a process of applying heat to the external surface of tank/pipe to maintain specific temperature of the contents.
Advantages For Electric Tracing Over Steam Tracing
COST: Electric tracing system is very much cheaper than steam tracing .Pipes,fittings & system used for steam generation not necessary for electric tracing. Hence saving factor of 40% to 50%
EFFICIENCY: heat loss in electric tracing is negligible over steam tracing due to its high insulation.
COST OF MAINTANANCE: Maintenance cost of electric tracing is almost negligible since there is no corrosion, leakage & pollution when compared to steam tracing.
INSTALLATION: Electric tracing system can be installed very easily when compared to steam tracing

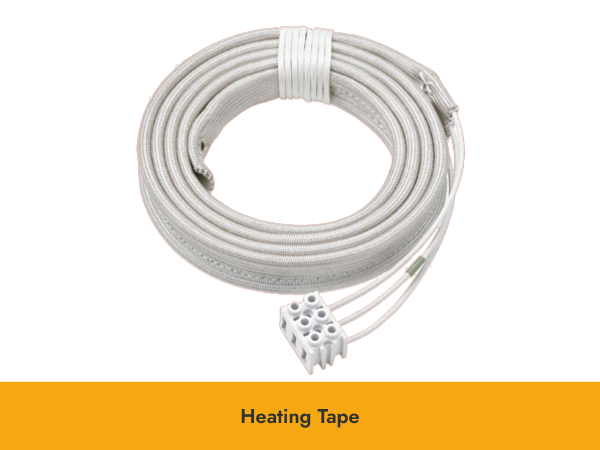

Heating Tape ( Embedded In Fiberglass Cloth)
Available In 30W/45W/60W/Per Metre
Standard Sizes – 10mm Width / 1,2,3,4,5,6,7,8, 10 Metres and also can be made according to the Customised Sizes
They have a wide range of applications and can be designed to heat any complicated structure i.e., valves, filters, storage tanks, pumps, process pipelines, motors etc.,
Salient features
- Uniform heating
- High flexibility
- Light weight
- Elegant look
- Very high efficiency
- Temperature up to 8000C
- Easy handling
Applications of Heating jackets
- Process plants
- Oil & Gas Production
- R&D Equipments. Any other process heating
- Petro Chemicals & Refineries
- Pipelines & Storage Tanks
- Refrigeration Equipment Environment

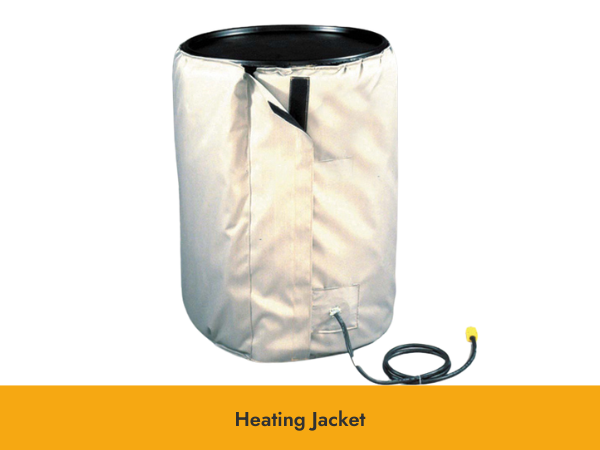

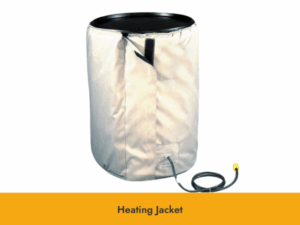

Calgen Heating Jackets
These are purely custom built to suit specific requirements. These heating jackets find applications in maintaining temperature in reactor vessels for easy flow of fluid while handling road tankers, Ice prevention & icing in radar reflectors, aircraft propellers and Nose Cones.
These are easy to install at low cost. These can withstand exposure to high temperature and are compatible to common voltage. And, at the same time they are economical.
Heating jackets consist of an inner layer of glass cloth in which heating elements are stitched. This is provided with 2” thick glass wool insulation and a final outer covering of PVC coated glass cloth. High flexibility of the jacket enables very good contact with the surface to be heated providing good heat transfer and high efficiency. Eyelets and laces arrangement on it enables quick and easy installation and dismantling.

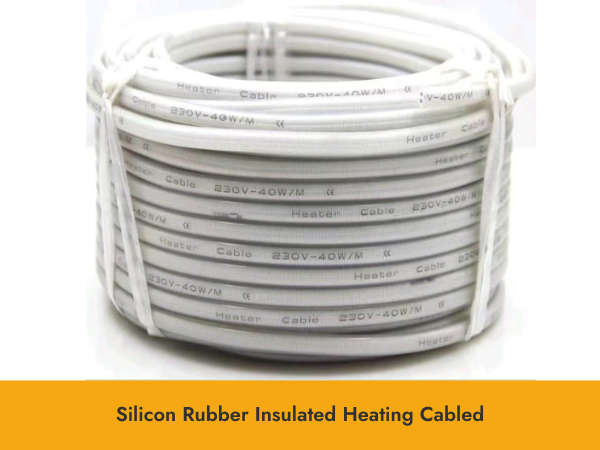

Silicon Rubber Heat Tracer

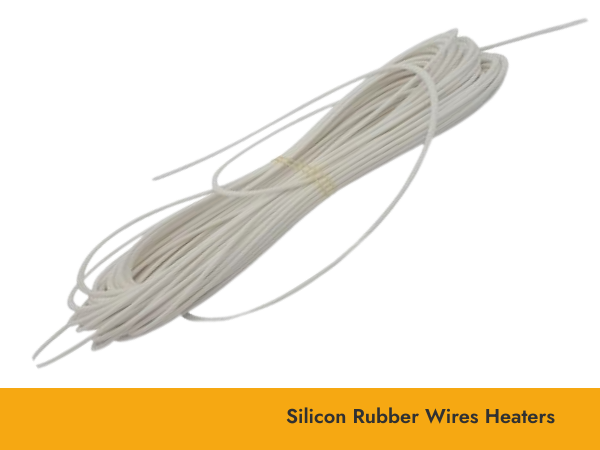

Silicone Insulated Heater
Wire Does your business or product need reliable, accurate, steady temperatures for specific tools and equipment? Silicone insulated heater wire is ideal for fast heating speed, even temperature, and accurate, efficient heat that is resilient to outside environments. This kind of wire can be applied in many different ways in a variety of equipment:
- Industrial applications: electric machines, air conditioning compressors, submersible pumps, freezing protection equipment, etc.
- Medical equipment: developmental tube heater, bodybuilding cloth, electric medicine pad, waistband, blood analyzer heater, etc.
- Household items: rice cookers, refrigerators, hairdressing and beauty tools, electric chairs, etc.
- Other applications include greenhouses and other planting and breeding businesses.
Silicone insulated heater wire is used in high wattage settings, with a min., of 15 watts per foot. With an electrical grade fiberglass core and SW-200 silicone rubber insulation, this wire is dependable and efficient. Among the varieties of silicone insulated heater wires, most wires can handle temperature ratings between 150 degrees Celsius and 200 degrees Celsius, from 600 through 6,000 voltage ratings. Voltages range between 300V and 600V. The diameters of the wires vary from 1.6 mm to 8 mm. all insulated heater wires last for over 10,000 hours. When one need a steady temperature in an area that naturally creates high, unsteady temperatures, choose silicone insulated wires. These wires are flexible and resist heat because of the silicone insulation that keep connections working.
Product Standards: UL758
| Description | Value |
|---|---|
| Rated Voltage: | 300V-600V |
| DC Voltage: | 3500V |
| Temperature Range: | -60℃～+200℃ |
| Conductor: | Fe Cr Aluminum Aooly,Ni Cr Alloy,Constantan Alloy,Copper nickel Alloy,Zinc white copper alloy Bend Round |
| Test: | 2500 times |
| Bending test: | 5000times |
| Insulation Resistance: | ≦1000MΩ |
| Insulation: | Silicone Rubber |
| O.D telerance: | ±0.15mm |
| Color: | White - OTHER COLOURS AS PER AVAILBAILITY. |
| Wire Diameter Range: | Ø1.5-5.0mm |
| Resistance Range : | 0.1-10000 Ω/m |
| Voltage: | 110V & 220V OR 230V |
Thermon Products
Cartridge Heaters
Industrial Applications

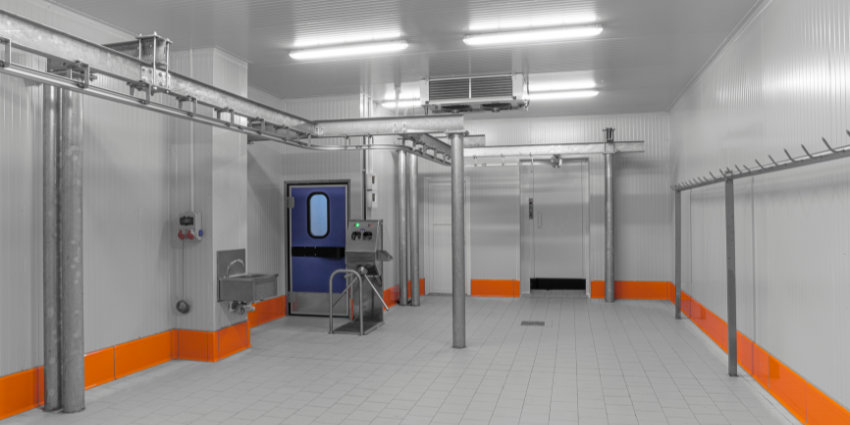

Calgen heaters by Heaters India are essential for a variety of cold-room applications, including:
Food and Beverage Storage – Maintaining ideal temperatures to prevent spoilage and preserve quality.
Pharmaceutical Cold Storage – Ensuring controlled environments for temperature-sensitive products.
Logistics and Warehousing – Protecting stored goods from freezing and frost damage.
Chemical Storage – Preventing freezing and maintaining liquid flow in pipelines and storage tanks.
Why Choose Calgen by Heaters India?
Heaters India, through the Calgen brand, delivers innovative and dependable heating solutions that support the operational efficiency of cold storage facilities. Our commitment to quality, advanced technology, and customer satisfaction ensures reliable performance and long-lasting results.
Reach out to Heaters India today to discover how Calgen cold-room heaters can enhance your cold storage operations, improve energy efficiency, and prevent frost-related issues.
